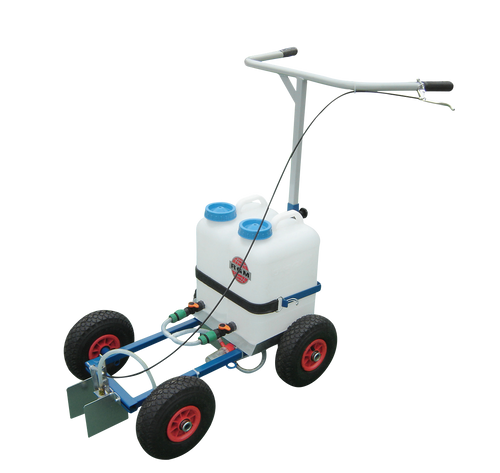

The RGM 202B sports field wet marking cart with mechanical pump - High-quality wet marking cart made in Germany. Sports field marking has never been easier or more time-saving!
Robust impeller pump

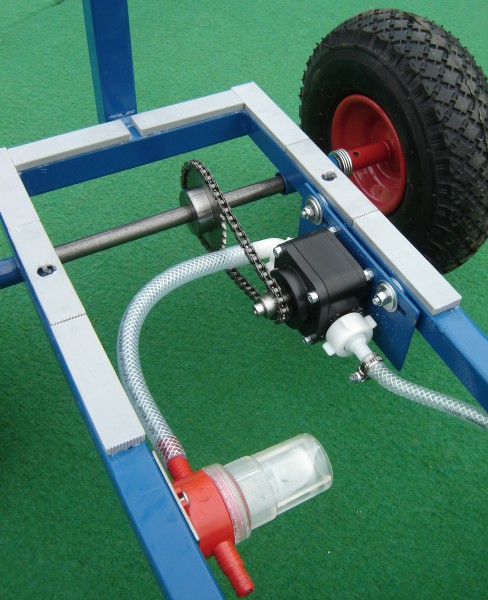

This marking carriage generates the required spray pressure with a newly developed impeller pump. This pump is coupled to the rear wheels of the marking carriage and thus generates the pressure for the spray nozzle by pushing the carriage. The pump is made of aluminium and is Hc-coated, the shaft is equipped with closed ball bearings and shaft seal, which makes the construction in combination with the mechanics very strong and robust. Therefore all known marking colours can be used. To extend the durability of the pump we recommend our standard or premium marking paint.
If you use the car exclusively with our device gentle marking paint Standard or Premium, we give you an additional 2-year legal warranty on the impeller pump. Thus you have a total of 5 years warranty on the pump.

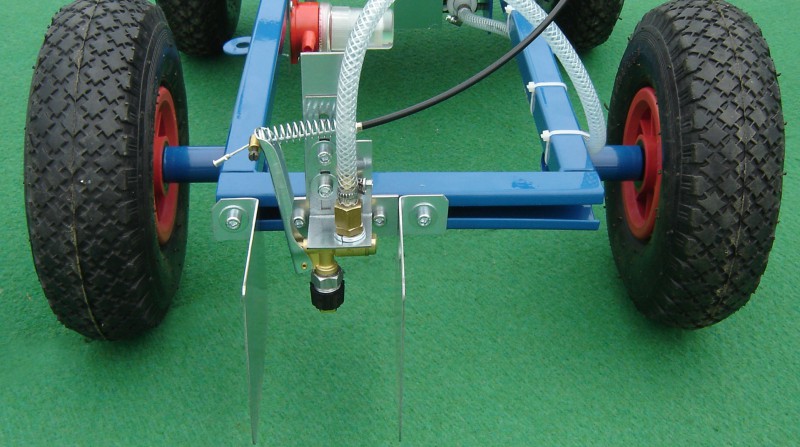

Practical and dimensionally accurate spraying device
The spraying device is located at the front in the operator's field of vision and is adjustable both laterally and in height. The line width can thus be adjusted to 50 - 120 mm, as required. By pulling the lever on the handlebar, the spray nozzle releases paint and the line can be marked with pinpoint accuracy.
Time-saving construction with two ink containers
The very practical thing about this wet marking trolley is the construction with two Plastic paint containers, each with its own outlet stopcock. Included in delivery are one 13 litre and one 19 litre canister. The 19 litre canister is filled with the marking paint (ratio water:paint, e.g. 4:1) and the 13 litre canister with 2-3 litres of water. With this you can now easily mark the whole football field. The subsequent cleaning of the pump, hoses and nozzle is very simple and time-saving by closing the tap of the paint tank and opening the tap of the water tank. By pulling the hand lever, the water from the water tank is now directed through the device and the marking carriage cleans itself within one minute. No need to dismantle the tanks, pump, hoses or nozzle. No manual cleaning.
Marking, change tank supply, put the car back in the garage, done.
The marking trolley has a stable tubular steel frame with powder-coated stove enamel. All small parts are galvanized. 4 pneumatic balloon wheels 260 x 85 mm with roller bearings ensure smooth running and exact lines. The guide handlebar is removable and height adjustable. Dimensions: 76 x 55 x 79 cm, weight: 22 kg
All spare parts can be supplied on a long-term basis.
At a glance
- Robust, mechanical wet marking cart with impeller pump
- Spray pressure by pushing the carriage
- Marking line width: 50-120 mm (variable)
- Spraying device mounted in the field of vision
- Two plastic containers, each with its own stopcock
- Steel frame construction on 4 balloon wheels with pneumatic tyres
- 5 years warranty on the impeller pump
- (When using the device gentle marking paint Standard or Premium from anstoss24.de)
- Dimensions: 76 x 55 x 79 cm
- Weight: 22 kg
- Delivery including operating and maintenance instructions
Der Wagen lässt sich gut handhaben. Einfache Bedienung und leicht zu reinigen. Leider hält die Beschriftung der Kanister nicht lange.
Nassmarkierwagen 2. 2021-10-12 14:12:15
einwandfreie Zustellung, gutes Gerät für Amateuervereine
Charly . 2020-11-27 09:16:01
